ITAG4 Dry Ice
Single-use Dry Ice Data Logger
Direct-in-Box Monitoring Down to -95°C
Built for extreme cold chain environments. No external probes required, the entire data logger can be placed directly inside dry ice shipping boxes, ensuring seamless and reliable temperature monitoring even at temperatures as low as -95°C.
PDF Report Embedded with Extractable Raw Data
Automatically generates encrypted PDF format report, no software required to access data file. PDF report includes recording summaries, statistics, alarm information, graph and optional tabular data. Embedded standard format raw data allows further data processing via TempSen Cloud and 3rd party system.
Software-free Configuration
Rapid programming data logger using configuration file created online, no need to install software or driver for device configuration, multiple platforms compatible.
Air Freight Compliance
Complies with IATA PI970 II and RTCA/DO-160G Environmental Conditions and Test Procedures for Airborne Equipment, qualified for air shipment in active status.
- Trusted stability ensures the safety of your shipment data
- Software-free cold chain monitoring solution, no software is needed for programming and downloading logger
- Compact size fits into any space limited shipping boxes

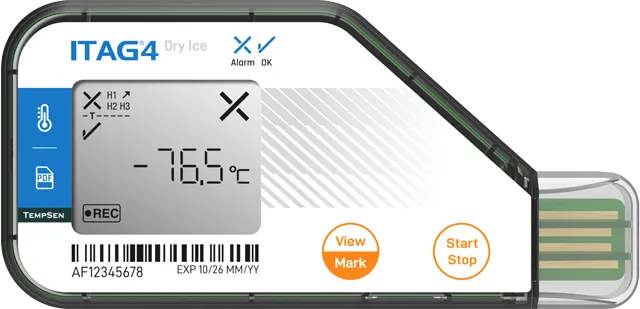

- LCD display shows operation, alarm status, and statistics
Explore the ITAG®4 Series
A complete family of single-use data loggers engineered for pharmaceutical, biological and clinical-trial supply chains, high accuracy, software-free workflow, and full TempSen Cloud integration.
Specifications
| Usage | Single Use |
| Sensor | Internal NTC Sensor |
| Memory | 28800 readings |
| Measurement Range | -95°C ... 70°C |
| Accuracy | ±0.5°C (-20°C ... 20°C), ±0.7°C (-80°C ... -20.1°C / 20.1°C ... 70°C), ±1.5°C (-95°C ... -80.1°C) |
| Resolution | 0.1°C/°F |
| Start Mode | Manual Start / Auto Start |
| Logging Interval | 1 minute to 2 hours |
| Battery | 3.0V lithium battery |
| Battery Life | 30 days (-80°C and above), 10 days (-95°C ... -80.1°C) |
| Shelf Life | 24 months (12 months if power activated) |
| Buttons | Start / Stop / View / Mark |
| Display | LCD -OK(✓), Alarm(x), Running status -Violation duration of each alarm zone -Statistics (max, min, avg) |
| Auto Data File | Encrypted PDF report with embedded raw data |
| Communication | USB 2.0 |
| Software | TempSen Express Desktop Software |
| System Requirements | Windows 10 / 11 (64-bit) |
| Calibration | Factory 6-point sampling calibration (AQL 0.25) |
| Certifications | CE, EN12803, RTCA-DO160G, IATA PI970 II, RoHS, WEEE, Manufacturer's Validation Certificate |
| Protection Class | IP65 |
| Dimensions | 93mm L x 45mm W x 16mm H |
| Weight | Approx. 58g |
